產品描述
一、DBYC型系列化霜定時器
DBYC型系列化霜定時器是一種由罩極式交流同步電機傳動的新型定時器,其特點是體積小,力矩大,工作可靠,其安裝尺寸,主軸旋轉方向及簧片端子的排列與美國PARAGON公司化霜定時器完全相同,故可以直接用于原來PARAGON定時器的各種風冷式無霜電冰箱

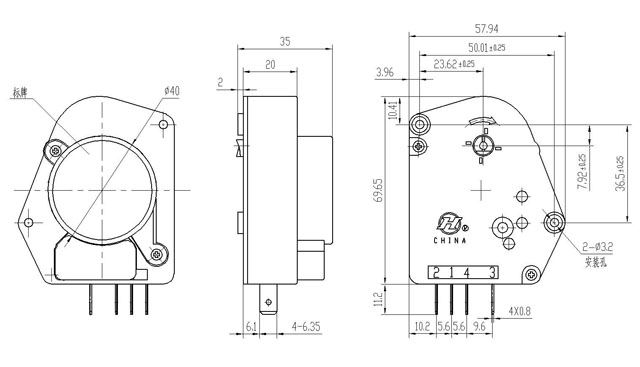

二、外形圖
三、主要技術指標
| 額定電壓 | 頻率 | 輸入電流 | 輸入功率 |
| AC100V | 50/60Hz | <10mA | 0.4W |
| AC110V/127V | 50/60Hz | <10mA | 0.4W |
| AC200V/240V | 50/60Hz | <15mA | 0.6W |
| 觸點容量 | |
| 1－4 | 1－2 |
| AC125V 10A COSφ=1 | AC125V 10A COSφ=0.5-1 |
| AC250V 5A COSφ=1 | AC250V 5A COSφ=0.5-1 |

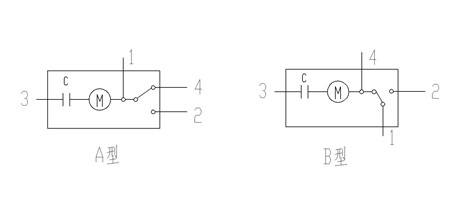

四、電路型式
電機 常開觸點: 1-2 常閉觸點: 1-4
五.定時周期T1和化霜時間T2
| DBYC系列定時器型號與定時周期參數對照表 | ||||||
| 型號 | 50HzT1 | 50HzT2 | 50HzT3 | 60HzT1 | 60HzT2 | 60HzT3 |
| DBYC108S | 1H13M±6M | 9M36S±2M24S | 1H01M±5M | 8M±2M | ||
| DBYC108SAN | 1H±6M | 7M30S±2M | 50M±5M | 6M15S±1M40S | ||
| DBYC109S | 1H02M±6M | 9M±3M | 51M±5M | 7M30S±2M30S | ||
| DBYC506 | 6H06M±6M | 8M±3M | 5H05M±5M | 6M40S±2M30S | ||
| DBYC603 | 6H±6M | 3M17S±1M12S | 5H±5M | 2M44S±1M | ||
| DBYC607S | 7H30M±6M | 8M24S±3M36 | 6H15M±5M | 7M±3M | ||
| DBYC621 | 7H12M±6M | 25M12S±3M | 6H±5M | 21M±2M30S | ||
| DBYC627 | 6H±6M | 27M30S±2M30S | 5H±5M | 22M55S±2M5S | ||
| DBYC640S | 5H59M±6M | 40－50M±5M | 4H59M±5M | 33-42M±4M10S | ||
| DBYC703 | 7H22M±6M | 3M±1M12S | 6H08M±5M | 2M30S±1M | ||
| DBYC706S | 8H01M±6M | 7M18S±2M24 | 6H41M±5M | 5M53S±2M | ||
| DBYC802 | 8H48M±6M | 2M24S±48S | 7H20M±5M | 2M±40S | ||
| DBYC804K | 8H4M±6M | 3M30S±1M12S | 1M30S±1M | 6H43M±5M | 2M55S±1M | 1M15S±50S |
| DBYC803 | 8H±6M | 2M24S±1M12S | 6H40M±5M | 2M±1M | ||
| DBYC805 | 8H±6M | 5M±1M12S | 6H40M±5M | 4M10S±1M | ||
| DBYC807S | 9H36M±6M | 8M24S±2M24S | 8H±5M | 7M±2M | ||
| DBYC807SBL | 10H21M±6M | 8M24S±2M24S | 8H38M±5M | 7M±2M | ||
| DBYC820 | 8H01M±6M | 20M54S±3M36S | 6H41M±5M | 17M24S±3M | ||
| DBYC822 | 9H38M±6M | 26M24S±3M36S | 8H01M±5M | 22M±3M | ||
| DBYC812 | 9H38M±6M | 15M±3M36S | 8H01M±5M | 12M30S±3M | ||
| DBYC825 | 8H01M±6M | 25M±5M | 6H41M±5M | 21M±4M20S | ||
| DBYC903 | 10H50M±6M | 3M36S±1M12S | 9H02M±5M | 3M±1M | ||
| DBYC907S | 12H±6M | 8M±3M | 10H±5M | 6M40S±2M30S | ||
| DBYC1003 | 12H±6M | 3M18S±1M12S | 10H±5M | 2M45S±1M | ||
| DBYC1004 | 9H57M±6M | 4M±1M12S | 8H18M±5M | 3M20S±1M | ||
| DBYC1005 | 10H50M±6M | 5M49S±1M12S | 9H02M±5M | 4M51S±1M | ||
| DBYC1009S | 12H±6M | 10M48S±2M24S | 10H±5M | 9M±2M | ||
| DBYC1012 | 12H01M±6M | 14M24S±3M36S | 10H01M±5M | 12M±3M | ||
| DBYC1035 | 11H58M±6M | 42M±3M36S | 9H58M±5M | 35M±3M | ||
| DBYC1107AL | 13H43M±6M | 8M30S±2M24S | 11H26M±5M | 7M5S±2M | ||
| DBYC1107AN | 11H24M±6M | 7M5S±2M24S | 9H30M±5M | 5M54S±2M | ||
| DBYC1107K | 11H24M±6M | 5M20S±1M12S | 2M±1M | 9H30M±5M | 4M27S±1M | 1M40S±50S |
| DBYC1107S | 11H22M±6M | 7M20S±2M24S | 9H28M±5M | 6M7S±2M | ||
| DBYC1203 | 12H±6M | 3M17S±1M12S | 10H±5M | 2M44S±1M | ||
| DBYC1204 | 12H±6M | 4M48S±1M12S | 10H±5M | 4M±1M | ||
| DBYC1205 | 12H±6M | 6M36S±1M12S | 10H±5M | 5M30S±1M | ||
| DBYC1206 | 12H±6M | 6M±1M12S | 10H±5M | 5M±1M | ||
| DBYC1207S | 12H±6M | 7M±2M24S | 10H±5M | 5M50S±2M | ||
| DBYC1208S | 14H20M±6M | 9M36S±3M36S | 11H56M±5M | 8M±3M | ||
| DBYC1210S | 12H18M±6M | 10M56S±3M | 10H15M±5M | 9M7S±2M30S | ||
| DBYC1210S | 12H17M±6M | 10M±2M | 10H14M±5M | 8M20S±1M40S | ||
| DBYC1110S | 13H18M±6M | 13M±2M24S | 11H05M±5M | 10M50S±2M | ||
| DBYC1221 | 14H24M±6M | 25M12S±3M36S | 12H±5M | 21M±3M | ||
| DBYC1230 | 11H58M±6M | 30M±3M36S | 9H58M±5M | 25M±3M | ||
| DBYC1235 | 14H24M±6M | 42M±3M36S | 12H±5M | 35M±3M | ||
| DBYC1302 | 13H±6M | 2M24S±48S | 10H50M±5M | 2M±40S | ||
| DBYC1307 | 16H02M±6M | 8M±2M24 | 13H22M±5M | 6M40S±2M | ||
| DBYC1307AN | 13H05M±6M | 7M12S±1M12S | 10H54M±5M | 6M±1M | ||
| DBYC1608 | 19H12M±6M | 9M36S±3M36S | 16H±5M | 8M±3M | ||
| DBYC2407 | 24H01M±6M | 7M±2M24S | 20H01M±5M | 5M50S±2M | ||
| DBYC2496 | 23H59M±6M | 96M±5M | 19H59M±5M | 80M±5M10S | ||
| DBYC24100 | 28H49M±6M | 120M±8M24S | 24H±5M | 100M±7M | ||
| DBYC3109 | 31H16M±6M | 7M30S±2M24S | 4M±1M30S | 26H03M±5M | 6M15S±2M | 3M20S±1M15S |
六、噪音:<30db(A)
七、可根據用戶需要生產其它各種特殊規格產品
