產品描述

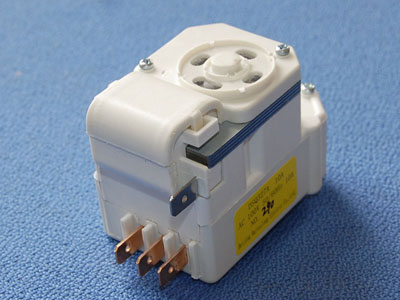

一、DSQ型化霜定時器
DSQ型化霜定時器是一種由馬蹄形交流永磁同步電機轉動的定時器,能按照一定間隔或壓縮機實際運行累計時間自動控制電冰箱的除霜.

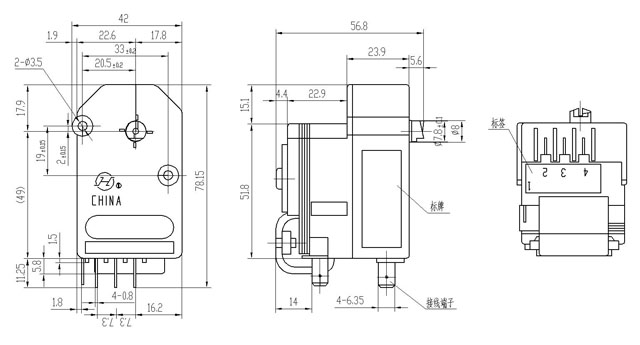

二、外形圖
三、主要技術指標
| 額定電壓 | 頻率 | 輸入電流 | 輸入功率 |
| AC100V | 50/60Hz | <32mA/<27mA | 1.8W/1.5W |
| AC110V/127V | 50/60Hz | <32mA/<27mA | 1.8W/1.5W |
| AC200V/240V | 50/60Hz | <15mA/<12mA | 1.8W/1.5W |
| 觸點容量 | |
| 3－2 | 3－4 |
| AC125V 10A COSφ=1 | AC125V 10A COSφ=0.7 |
| AC250V 5A COSφ=1 | AC250V 5A COSφ=0.7 |

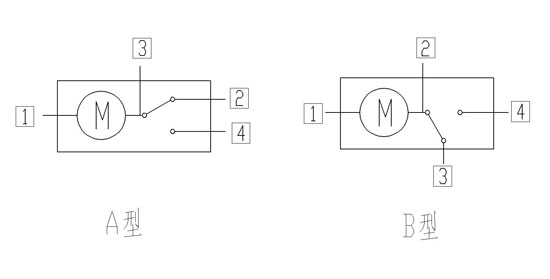

四、電路型式
電機 常開觸點: 3-2 常閉觸點: 3-4
五.定時周期T1和化霜時間T2
| DSQ系列定時器型號與定時周期參數對照表 | ||||
| 型號 | 50HzT1 | 50HzT2 | 60HzT1 | 60HzT2 |
| DSQ-1 | 8H46M±6M | 2M24S±1M12S | 7H18M±5M | 2M±1M |
| DSQ212 | 1H50M±6M | 13M42S±3M | 1H32M±5M | 11M25S±2M30S |
| DSQ215 | 3H18M±6M | 18M±3M36S | 2H45M±5M | 15M±3M |
| DSQ215 | 3H19M±6M | 18M±3M36S | 2H46M±5M | 15M±3M |
| DSQ304 | 3H42M±6M | 4M±1M12S | 3H05M±5M | 3M20S±1M |
| DSQ305 | 3H41M±6M | 6M31S±2M24S | 3H04M±5M | 3M20S±5M26S |
| DSQ309 | 3H42M±6M | 10M48S±3M | 3H05M±5M | 9M±2M30S |
| DSQ313 | 3H42M±6M | 15M12S±3M | 3H05M±5M | 12M40S±2M30S |
| DSQ320 | 3H42M±6M | 20M±3M36S | 3H05M±5M | 16M40S±3M |
| DSQ327 | 3H42M±6M | 27M24S±3M36S | 3H05M±5M | 22M50S±3M |
| DSQ406 | 4H29M±6M | 6M±2M24S | 3H44M±5M | 5M±2M |
| DSQ518 | 4H50M±6M | 18M±3M36S | 4H01M±5M | 15M±3M |
| DSQ603 | 6H±6M | 3M14S±1M12S | 5H±5M | 2M42S±1M |
| DSQ605 | 7H24M±6M | 6M±2M24S | 6H10M±5M | 5M±2M |
| DSQ610 | 6H±6M | 10M±2M24S | 5H±5M | 8M20S±2M |
| DSQ622 | 5H59M±6M | 22M±3M36S | 4H59M±5M | 18M20S±3M |
| DSQ635 | 6H36M±6M | 35M±3M36S | 5H30M±5M | 29M10S±3M |
| DSQ706 | 7H54M±6M | 7M±2M24S | 6H35M±5M | 5M50S±2M |
| DSQ724 | 7H54M±6M | 29M21±3M36S | 6H35M±5M | 24M21S±2M |
| DSQ807S | 8H01M±6M | 7M±2M24S | 6H41M±5M | 5M50S±2M |
| DSQ811 | 9H35M±6M | 13M12S±3M36S | 7H59M±5M | 11M±3M |
| DSQ814 | 8H±6M | 14M±3M36S | 6H40M±5M | 11M40S±3M |
| DSQ815 | 9H43M±6M | 18M±3M36S | 8H05M±5M | 15M±3M |
| DSQ830 | 9H37M±6M | 35M±4M | 8H01M±5M | 29M50S±3M20S |
| DSQ839 | 8H46M±6M | 39M±3M36S | 7H18M±5M | 32M30S±3M |
| DSQ1009 | 10H18M±6M | 9M07S±3M | 8H35M±5M | 7M36S±2M30S |
| DSQ1009S | 12H18M±6M | 10M56S±3M | 10H15M±5M | 9M07S±2M30S |
| DSQ1016 | 10H36M±6M | 16M48S±3M36S | 8H50M±5M | 14M±3M |
| DSQ1103 | 13H06M±6M | 3M35S±1M12S | 10H55M±5M | 2M59S±1M |
| DSQ1205 | 11H59M±6M | 2M－6M54S±1M12S | 9H58M±5M | 2M-4M36S±1M |
| DSQ1207 | 11H58M±6M | 7M±2M24S | 9H58M±5M | 5M50S±2M |
| DSQ1210 | 12H04M±6M | 10M48S±3M | 10H04M±5M | 9M±2M30S |
| DSQ1010 | 12H22M±6M | 10M48S±3M | 10H18M±5M | 9M±2M30S |
| DSQ1215 | 11H58M±6M | 15M±3M | 9H58M±5M | 12M30S±2M30S |
| DSQ1221 | 11H58M±6M | 21M±3M36S | 9H58M±5M | 17M30S±3M |
| DSQ1436 | 14H28M±6M | 36M±4M36S | 12H04M±5M | 30M±4M |
| DSQ1608 | 19H12M±6M | 2M－11M4S±1M12S | 16H±5M | 2M-7M22S±1M |
| DSQ2112 | 21H18M±6M | 2M－12M17S±1M12S | 17H45S±5M | 2M-8M11S±1M |
| DSQ2415 | 24H02M±6M | 15M－120M±2M24S | 20H02S±5M | 12M30S-100M±2M |
| DSQ2460 | 24H02M±6M | 60M±6M | 20H02S±5M | 50M±5M |
六、噪音:<30db(A)
七、可根據用戶需要生產其它各種特殊規格產品
